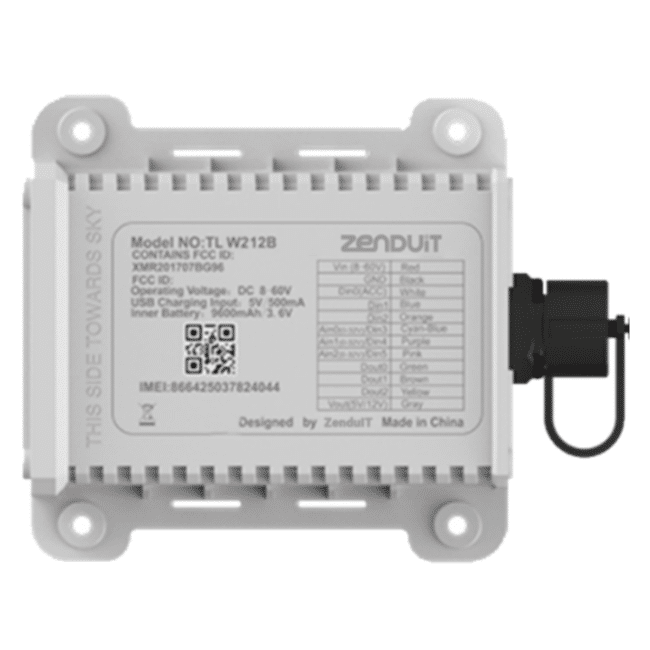

Smart, Reliable, and Long-Lasting Trailer Tracker
Advanced 4G LTE tracking with BLE 5.0, built-in sensors, and a powerful battery for uninterrupted asset monitoring.
Solutions Offered
Seamless Tracking, Anytime, Anywhere
Real-time tracking with an extended battery, rugged design, and advanced connectivity for comprehensive asset management.
Real-Time and Buffered Location Updates
Delivers live GPS tracking every 3 seconds and stores up to 60,000 location points in offline mode.
Large Backup Battery for Uninterrupted Tracking
9600 mAh rechargeable battery lasts up to 20 days with 5-minute reporting intervals.
BLE 5.0 Sensor Compatibility
Works with BLE temperature, humidity, door sensors, and wireless relays for enhanced monitoring.
Rugged and Waterproof Design (IP67)
Withstands harsh environments with IP67 protection, tested under 5-meter water pressure for 15 hours.
Multiple Input & Output Options
Equipped with 3 digital inputs, 3 digital outputs, and 3 configurable I/O ports for connecting various accessories.
Driving Behavior Detection
Detects reckless driving events such as harsh acceleration, turning, braking, crashes, and speeding.
Features Comparison
ZenTRACK Power+
ZenTRACK Power
ZenTRACK Solar
ZenTRACK Oyster
ZenTRACK Barra
ZenTRACK Yabby
as 10 seconds
as 10 seconds
as 10 seconds
points
34mm (5.2″ x 3.93″ x 1.34″)
12mm (4.04″ x 1.67″ x 0.47″)
35.7mm (3.26″ x 2.63″ x 1.40″)
21mm (5.9″ x 2″ x 0.8″)
inputs (digital/analog),
1 voltage output
inputs (digital/analog)
B4/B5/B8/B12
/B13/
B18/B19/
B20/B25/B28
TDD: B39
(Cat M1 only)
EGPRS: 850/900/1800/
1900MHz
B3/B4/B5/
B/8/B12
/B13/B18/B19/
B20/B25/B28
TDD: B39
(Cat M1 only)
EGPRS: 850/900/1800/
1900MHz
B4/B5/
B8/B12/B13/
B18/B19/B20/B25/B26/
B27/B28
B66/B85
LTE FDD Cat NB2: B1/B2/B3/B4/
B5/B8/B12/B13/
B18/B19/
B20/B25/
B28/B66/B71/B85
GSM/EDGE: 850/
900/1800/1900 MHz
(Cat-M1): B1/B2/B3/
B4/B5/B8/
B12/B13/B14/
B18/B19/B20/
B25/B26/B28/B66
NB-IoT
(Cat-NB1/NB2): B1/B2/B3/
B4/B5/B8/
B12/B13/B17/
B19/B20/B25/
B26/B28/B66
(Cat-M1): B1/B2/B3/
B4/B5/B8/
B12/B13/B14/
B18/B19/B20/
B25/B26/B28/B66
NB-IoT
(Cat-NB1/NB2): B1/B2/B3/
B4/B5/B8/
B12/B13/B17/
B19/B20/B25/
B26/B28/B66
(Cat-M1): B1/B2/B3/
B4/B5/B8/
B12/B13/B14/
B18/B19/B20/
B25/B26/B28/B66
NB-IoT
(Cat-NB1/NB2): B1/B2/B3/
B4/B5/B8/
B12/B13/B17/
B19/B20/B25/
B26/B28/B66
Technical Specification
Add Section description
Network and Operating Band
GSM Bands
FDD: B1/B2/B3/B4/B5/B8/B12/ B13/B18/B19/B20/B25/B28
TDD: B39 (Cat M1 only)
EGPRS 850/900/1800/1900MHz
GNSS Specifications
GPS Chipset
Qualcomm Gen 8C GNSS receiver
Paraller GNSS
GPS+Glonass+Galileo+Beidou
Inputs and Outputs
Digital Input
Digital Output
3
3
Battery
Rechargeable Battery
Rechargeable Li 9600 mAh/ 3.6V
Charging & Data Communication
Charging and Data Communication
Magnetic USB cable (Recommend using 5V 1A adaptor, 20 hours charging)
Get the Full Product Details
Frequently Asked Questions
What is the battery capacity?
The device is equipped with a 200 mAh backup battery to send disconnection alerts when power is disconnected.
Is it waterproof?
Yes, it is IP67 rated for water and dust resistance.
What networks does it support?
Supports 4G LTE with fallback to 3G/2G for global coverage.
