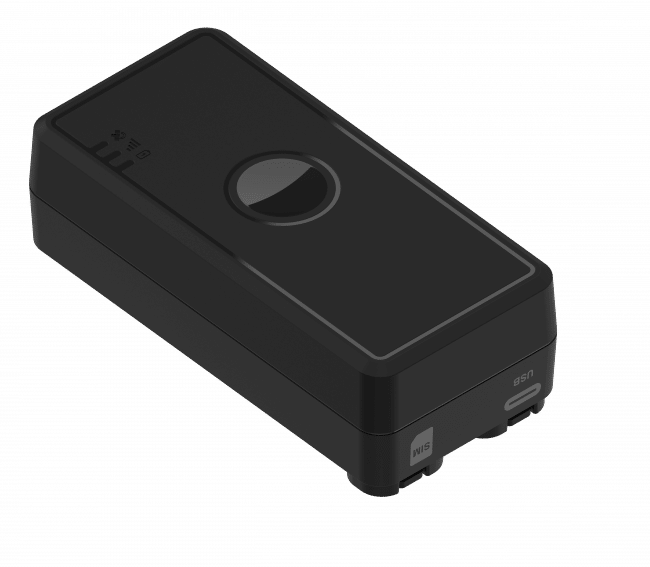

Rechargeable Battery-Powered Tracker

Efficient 4G LTE tracking with real-time location updates, panic button, and optional temperature monitoring for diverse applications.

Key Features of ZenTRACK Knight

Recharge device provides reliable location tracking, movement alerts, and optional external temperature monitoring in a durable, waterproof device.

Real-Time and Buffered Location Updates

Provides location updates as frequent as every 3 seconds and can store up to 60,000 location points in case of network loss.

Rechargeable Battery

6400mAh rechargeable battery, providing up to 247 days of active tracking.

IP67 Waterproof Design

Waterproof and dustproof with an IP67 rating, suitable for various environmental conditions.

BLE 5.0 Sensor Compatibility

Supports Bluetooth Low Energy 5.1 for connecting external wireless sensors and accessories.

Panic Button for Emergency Alerts

Provides immediate emergency alerts with the press of a button.

Features Comparison

ZenTRACK Power+

ZenTRACK Power

ZenTRACK Warrior

ZenTRACK Knight

ZenTRACK Solar

Location Updates
Real-Time Updates Frequency
As frequent as 3 seconds
As frequent as 3 seconds
Regular updates; more frequent in SVR mode
As frequent as 3 seconds
As frequent as 3
seconds
Buffer Data Storage
Up to 60,000 location points
Up to 60,000 location
points
Up to 60,000 location
points
BLE Sensor Functionality
BLE Sensor Compatibility
General Specifications
Dimensions
132mm x 100mm x
34mm (5.2″ x 3.93″ x 1.34″)
102.5mm x 42.5mm x
12mm (4.04″ x 1.67″ x 0.47″)
82.8mm x 66.9mm x
35.7mm (3.26″ x 2.63″ x 1.40″)
91.8mm x 43.5mm x
29.2mm (3.61″ x 1.71″ x 1.14″)
85mm x 185mm x
31mm (3.35″ x 7.28″ x 1.22″)
Waterproof Rating
IP67
IP65
IP67
IP67
IP67
Operating Voltage
7V to 60V DC
7V to 60V DC
Not applicable (battery-powered)
Not applicable (battery-powered)
Not applicable (battery-powered)
Operating Temperature
-25°C to +80°C (-13°F to 176°F)
-30°C to +80°C (-22°F to 176°F)
-30°C to +80°C (-22°F to 176°F)
-20°C to +80°C (-4°F to 176°F)
-25°C to +80°C (-13°F to 176°F)
Battery Capacity
Battery Capacity
9600 mAh
200 mAh
4000 mAh (optional 8000 mAh)
6400 mAh
9600 mAh
Battery Backup Duration
Up to 20 days (5-minute reporting interval)
Not specified
Up to 3.3 years (4000 mAh) or 6.5 years (8000 mAh) with 1 report/day
Up to 247 days (10-minute reporting interval)
Lasts for months without solar charging
I/O Expandability Options
I/O Expandability Options
3 digital inputs, 3 digital outputs, 3 configurable
inputs (digital/analog),
1 voltage output
3 digital inputs, 2 digital outputs, 3 configurable
inputs (digital/analog)
Not specified
Not specified
Not specified
Driving Behavior Detection
Driving Behavior Detection
Not specified
Yes; detects harsh acceleration, turning, braking, crash, and speeding
Not specified
Not specified
Not specified
Network Operating Band
Operating Bands
“FDD: B1/B2/B3/B4/B5/B8/B12
/B13/
B18/B19/
B20/B25/B28
TDD: B39
(Cat M1 only)
EGPRS: 850/900/1800/
1900MHz”
“FDD: B1/B2/B3/B4/B5/
B/8/B12
/B13/B18/B19/
B20/B25/B28
TDD: B39
(Cat M1 only)
EGPRS: 850/900/1800/
1900MHz”
“LTE FDD Cat M1: B1/B2/B3/B4/B5/
B8/B12/B13/
B18/B19/B20/B25/B26/
B27/B28
B66/B85LTE FDD
Cat NB2: B1/B2/B3/B4/
B5/B8/B12/B13/
B18/B19/
B20/B25/
B28/B66/B71/B85
GSM/EDGE: 850/
900/1800/1900 MHz”
“LTE FDD Cat M1: B1/B2/B3/B4/B5/
B8/B12/B13/B18/B19/B20
/B25/B26/B27/
B28/B66/B85
LTE FDD Cat NB2: B1/B2/B3/B4/
B5/B8/B12
/B13/B18/B19/B20/
B25/B28/
B66/B71/B85
GSM/EDGE: 850/900/
1800/1900 MHz”
“FDD: B1/B2/B3/B4/B5/B8/
B12/B13/
B19/B20/
B25/B28
TDD: B39
(Cat M1 only)
EGPRS:
850/900/
1800/1900MHz”

Technical Features

Expand All Collapse All

Network & Connectivity

Cellular Network

4G LTE FDD Cat M1

Location & Navigation

Satellite Systems

GPS + Glonass + Beidou + Galileo support

Durability & Power

Protection Rating
Battery

IP65 waterproof

6400mAh rechargeable battery

Get the Full Product Details

Frequently Asked Questions

What is the battery life of the KnightX 300?

Up to 247 days of active tracking with a 6400mAh rechargeable battery.

Is the KnightX 300 waterproof?

Yes, it has an IP67 rating, ensuring it is resistant to water and dust.

Does it have a panic button?

Yes, the KnightX 300 has a panic button that sends immediate emergency alerts.
